VW Golf Mk8 / Mk8.5 GTI & R FlowCore400™ Performance Downpipe System
Gain +14.8 WHP & +16.6 Nm Torque in Daily Driving.

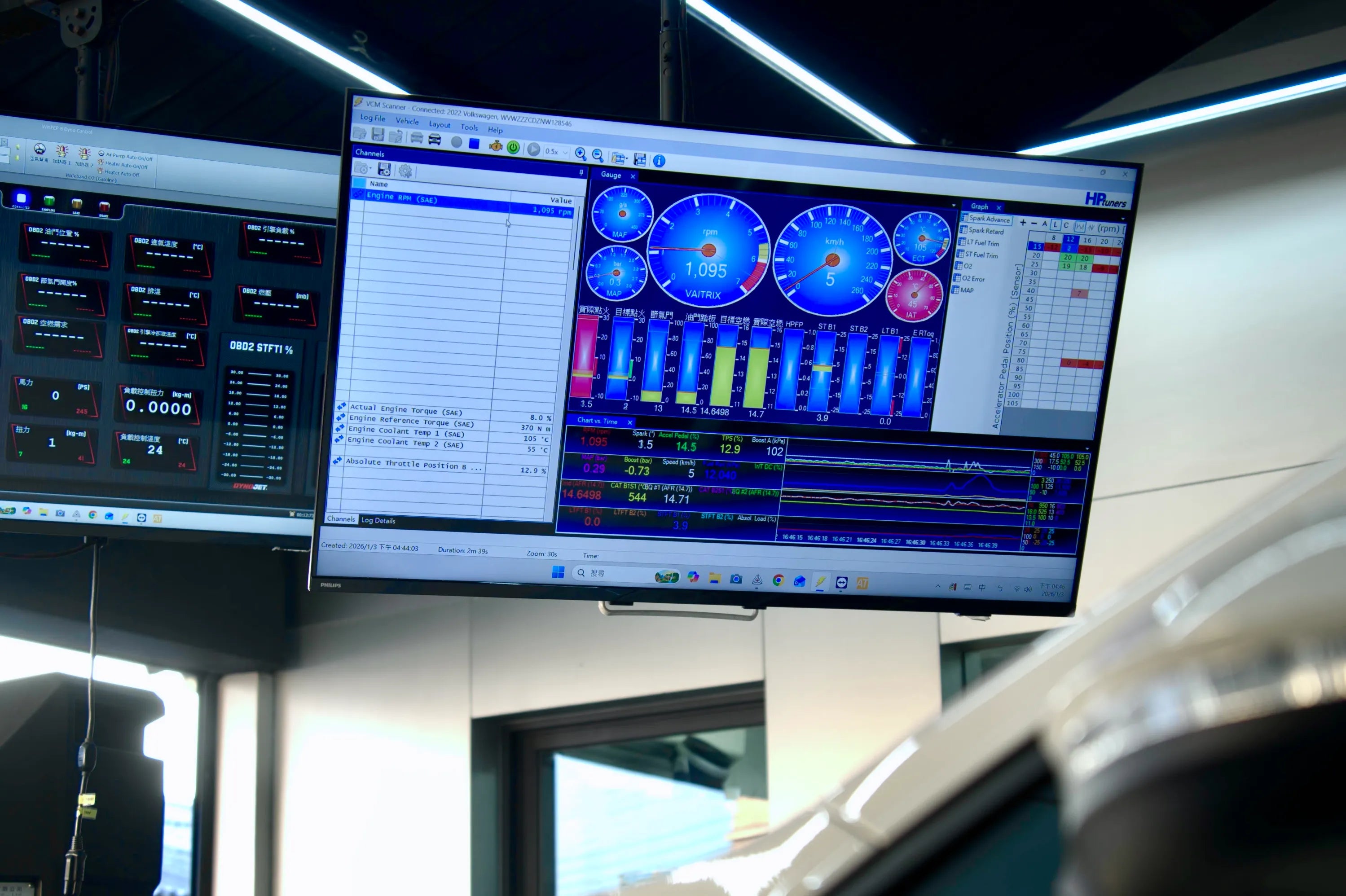

Third-party dyno tested. Engineered for real-world response
Engineered for response, torque, and everyday drivability.
Not peak numbers. Not dyno screenshots. Built for how the car is actually driven — every day.
No CEL. No coding. No exhaust odor.
The factory downpipe and OPF system prioritizes emissions compliance over response. In real-world driving — especially between 1,500–4,000 rpm — this results in delayed torque delivery and muted throttle response, exactly where the car is used most.
Many aftermarket solutions chase peak horsepower at high rpm. The trade-off is often degraded daily drivability, unstable mid-range behavior, or warning lights that require coding workarounds that can jeopardize vehicle warranty.
What It Is

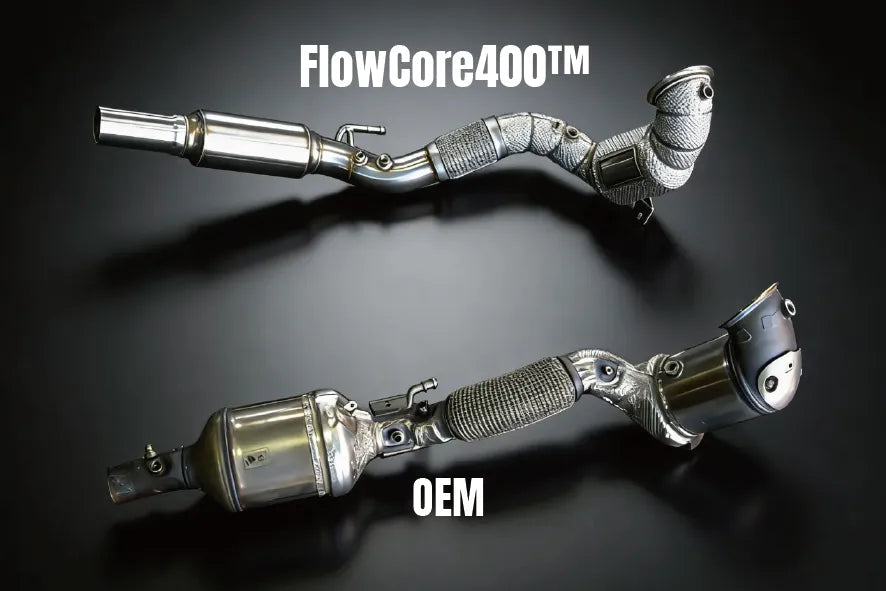

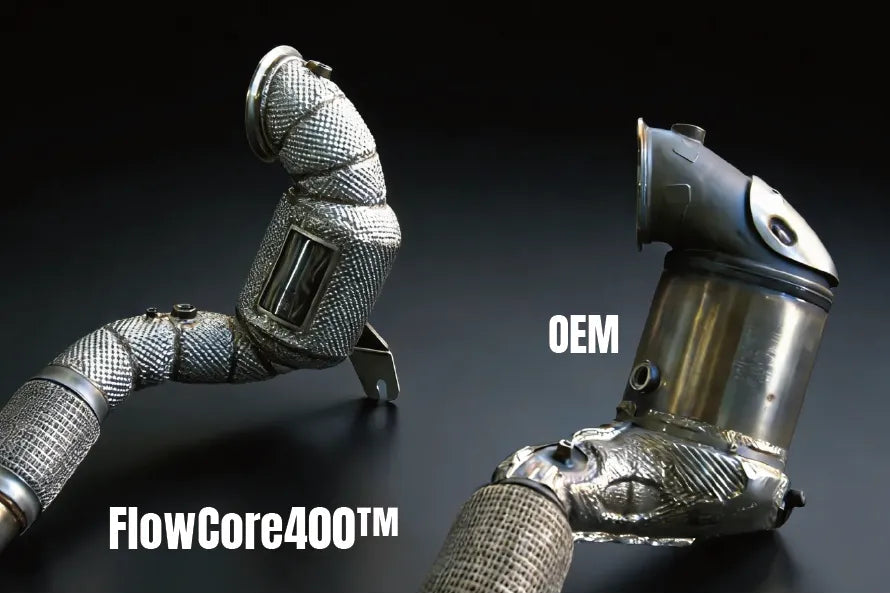

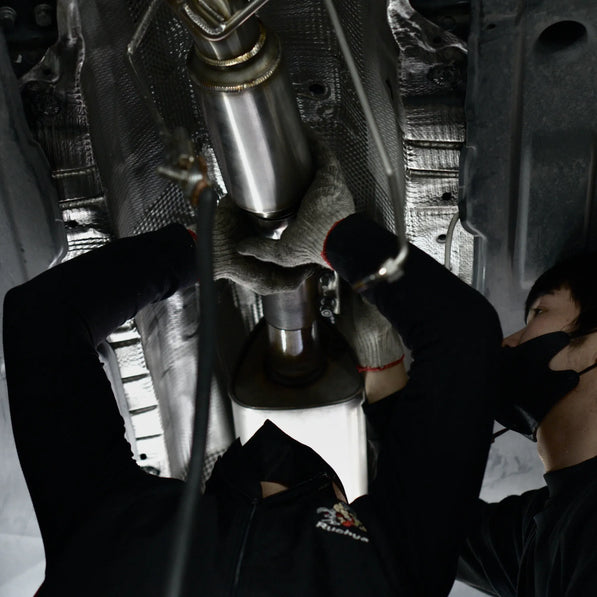

The VW Golf Mk8 / Mk8.5 GTI & R FlowCore400™ Performance Downpipe System is a complete performance solution featuring an in-house developed OPF replacement and a high-flow 400-cell catalytic upper section. Designed as a direct bolt-on solution with factory sensor locations retained.
Design Intent & Engineering Notes
FlowCore400™ technology was developed from the inside out, focusing on exhaust behavior where it matters most.
The internal structure was revised repeatedly during development. The body was twisted and re-angled multiple times to optimize internal flow paths. These thoughtful angles ensure that exhaust gas maintains the high velocity required for immediate turbocharger spool.
Controlled vortex generation inside the upper section helps maintain exhaust velocity and extract usable energy instead of wasting it. Every angle counts when the goal is earlier torque and stable mid-range response.
Why It Exists
FlowCore400™ exists to improve how the car feels, not just how it reads on paper.
- Odorless Operation: 400-cell core ensures minimal raw fuel odor in the cabin or environment.
- Anti-Limp Mode: Engineered to maintain factory pressure differentials, preventing sensor errors common with generic deletes.
- Hardware-Driven Performance: Optimized for the factory ECU; no software coding required.
- Faster Spool: Peak torque hits 235 RPM earlier for superior low-end response.

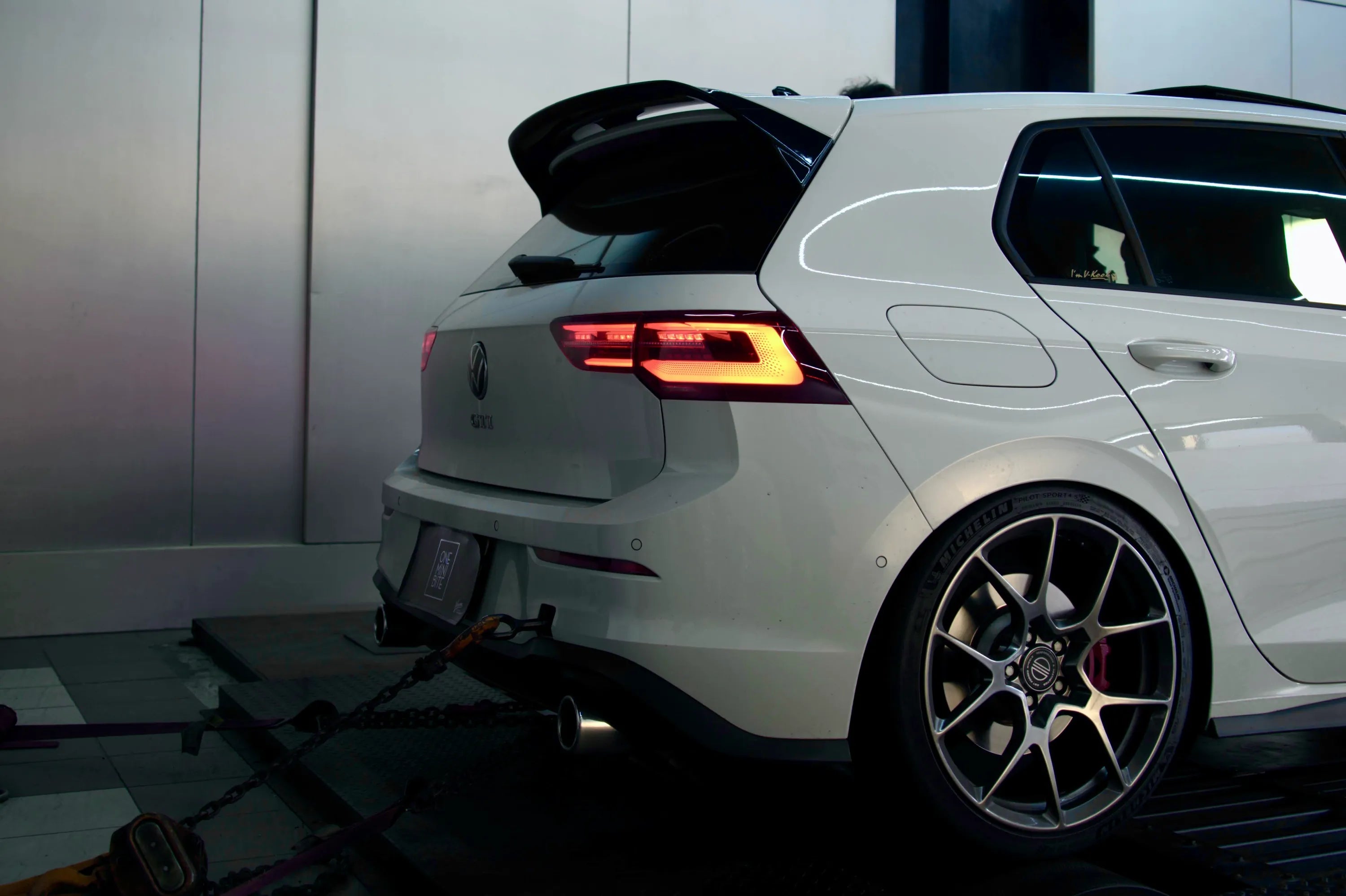

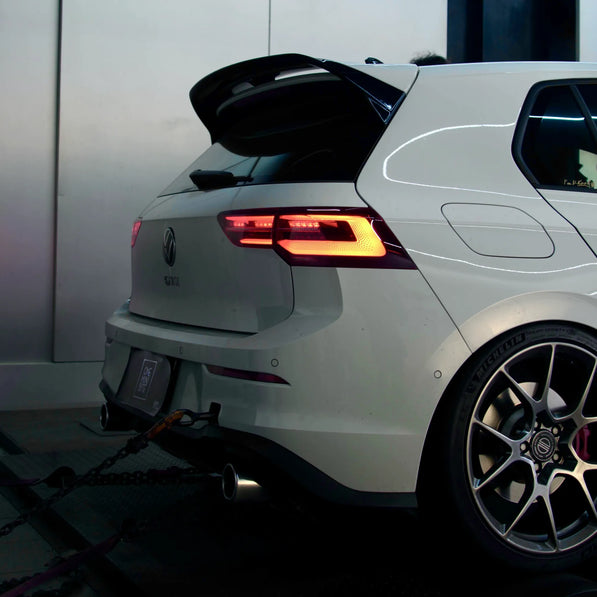

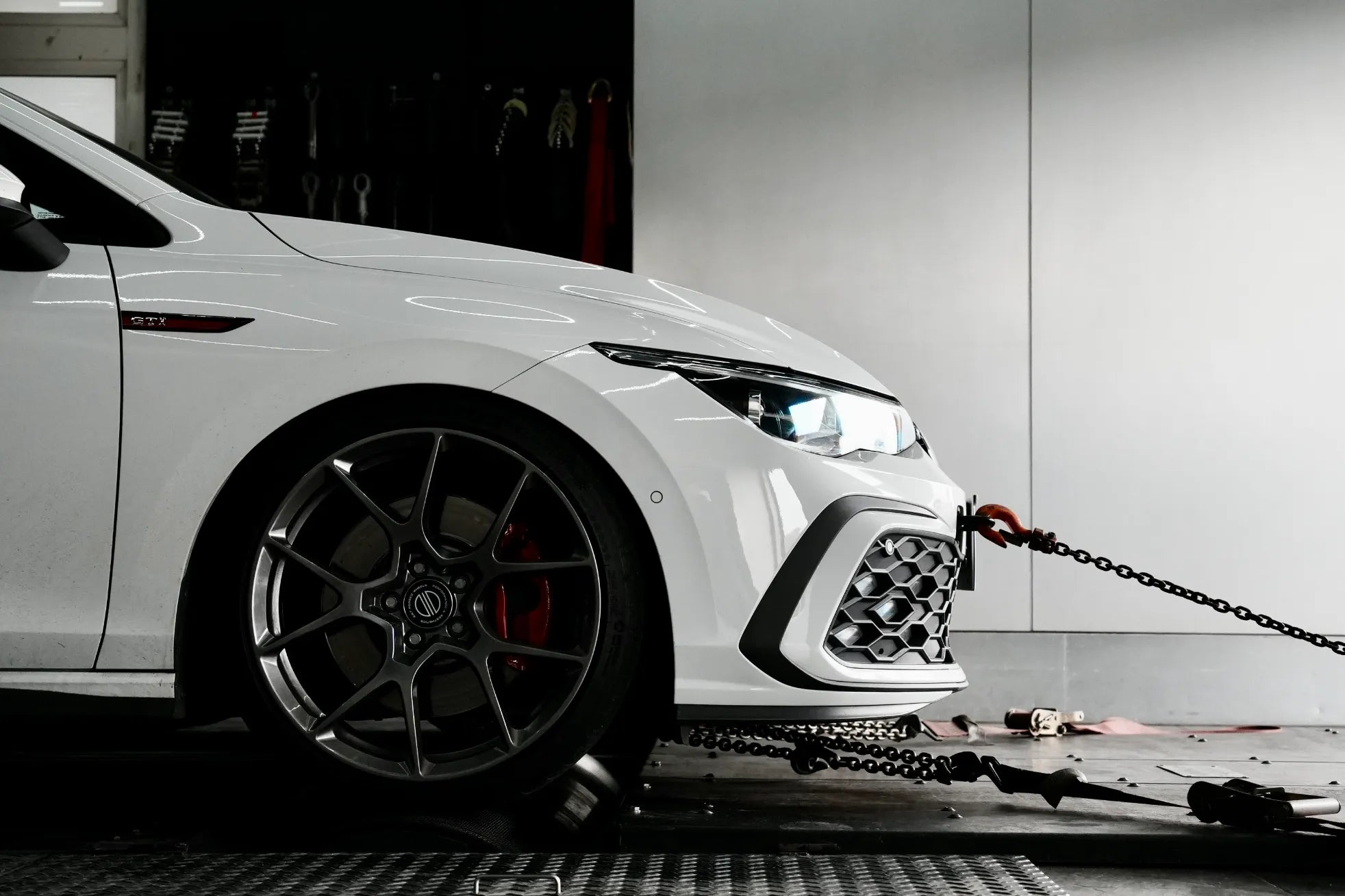

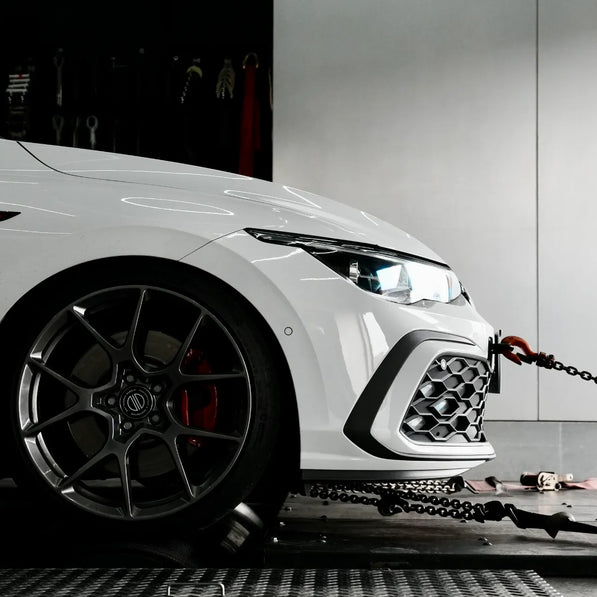

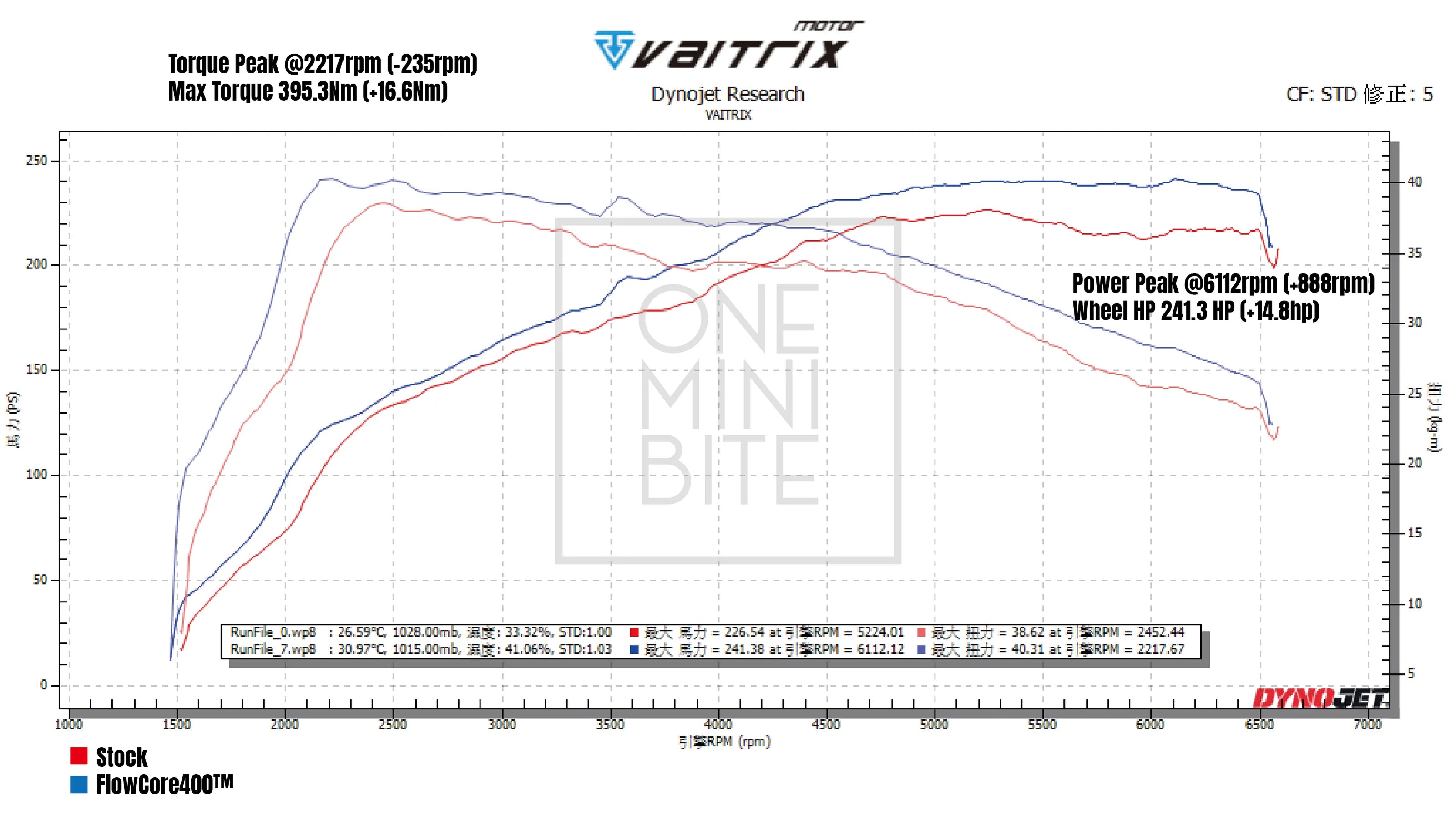

Dyno Comparison: Mk8 GTI
| Metric | OEM | FlowCore400™ | Diff. |
|---|---|---|---|
| Torque Peak | 2,452 | 2,217 | -235rpm |
| Max Torque | 378.7 | 395.3 | +16.6Nm |
| Power Peak | 5,224 | 6,112 | +888rpm |
| Wheel HP | 226.5 | 241.3 | +14.8hp |
The data confirms earlier torque engagement and extended usable power — improvements immediately felt in daily driving. VW Golf 8.5 R dyno validation in progress.

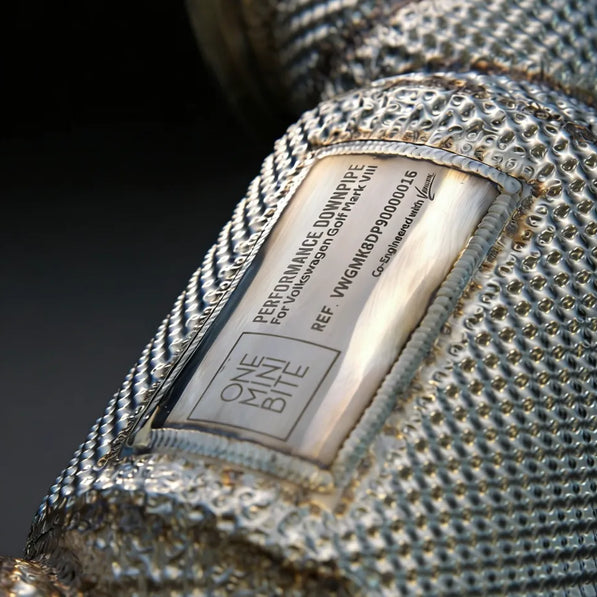

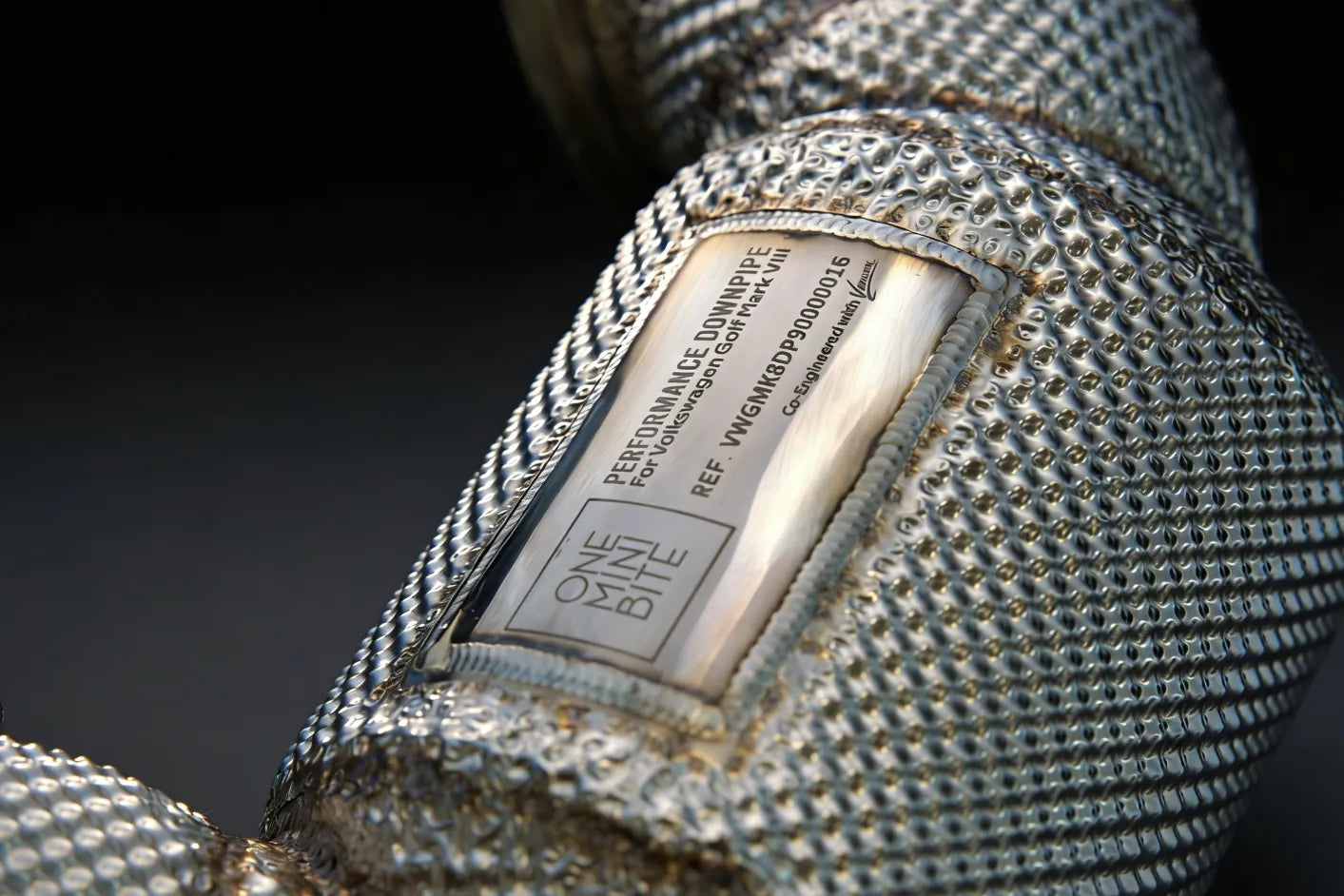

Materials & Construction

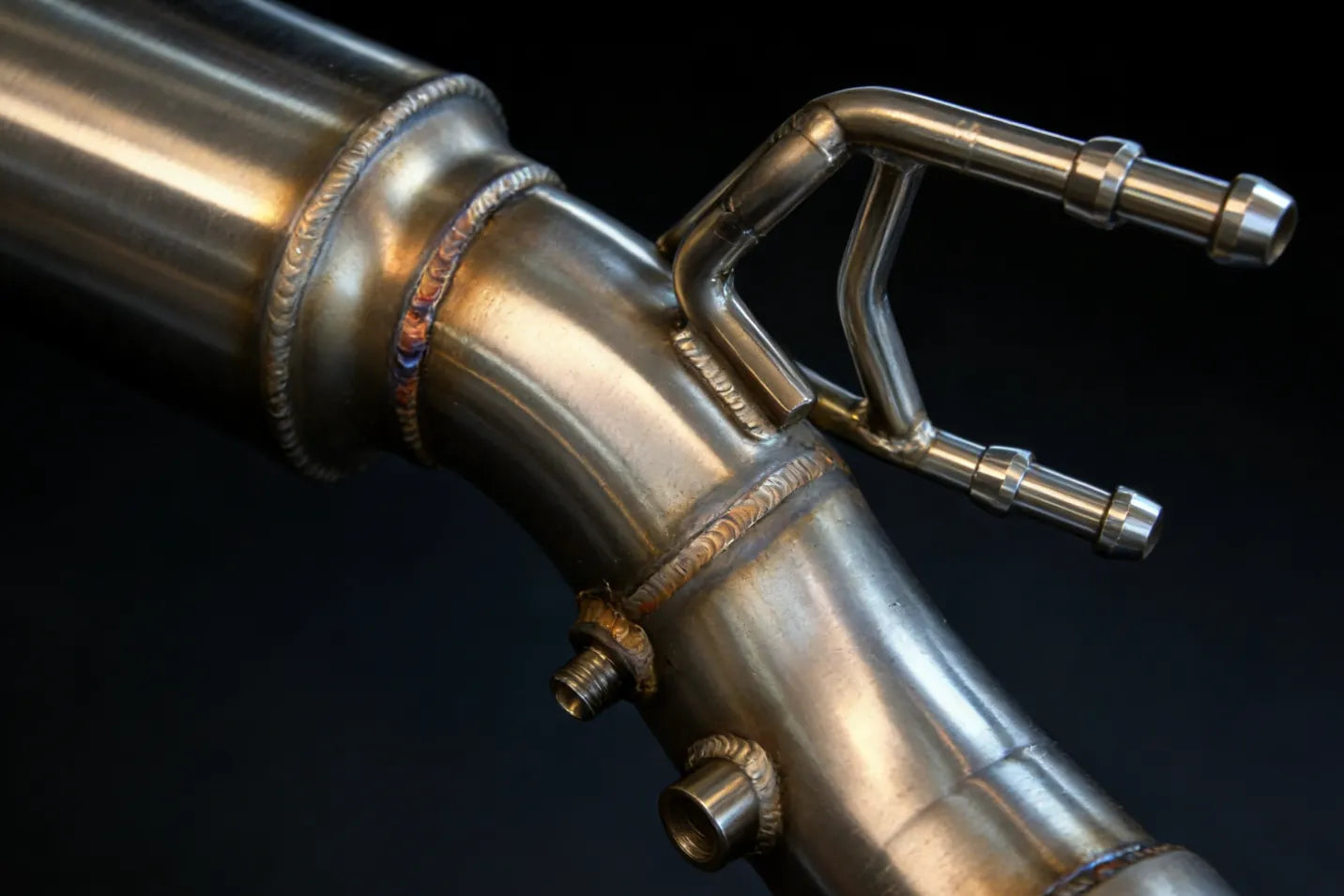

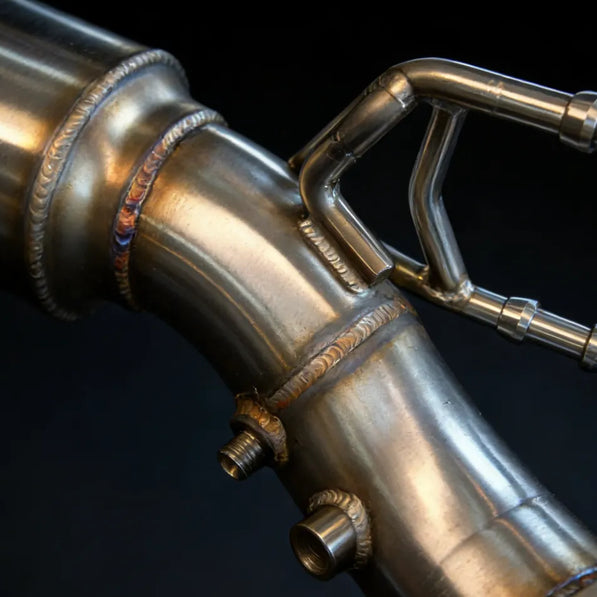

- T304 stainless steel construction
- High-flow 400-cell catalytic upper section
- CFD-optimized cast upper downpipe
- Thickened, reinforced flanges
- Precision TIG-welded for heat and pressure resistance

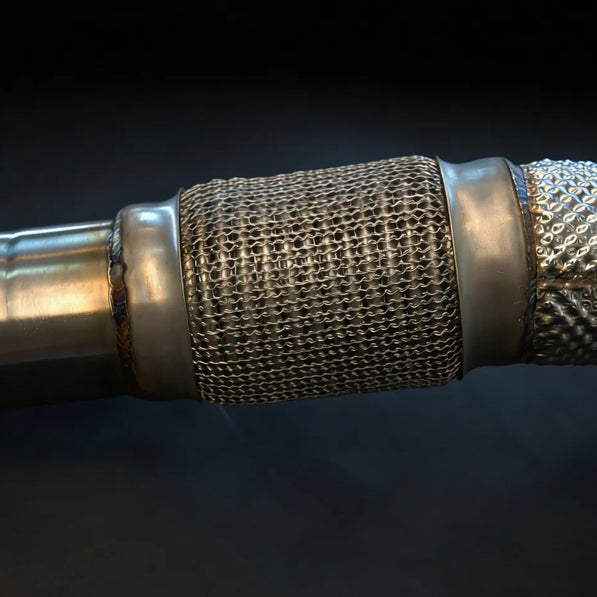

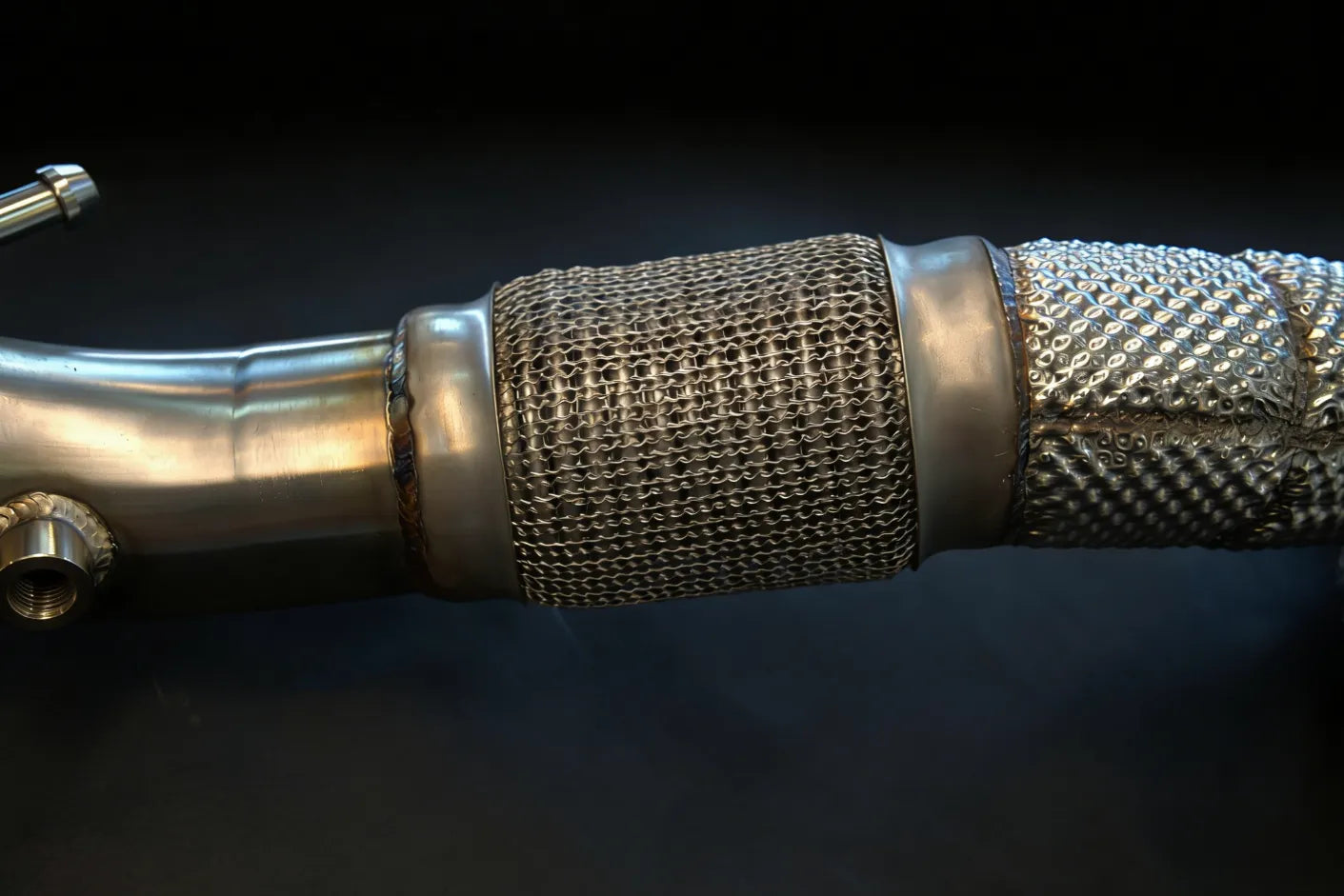

- OEM-style corrugated mesh flex bellow
Technical Specifications
- 70mm constant-diameter exhaust path
- Optimized exhaust velocity and flow stability
- Weight reduction: −2.3 kg vs factory
- Factory catalyst placement and oxygen sensor provisions maintained
Daily-Use Focus
- No CEL / No coding required
- Emissions Compliant Profile: Professional-grade filtration and odor control
- Stable behavior across varying ambient conditions
- Designed for repeatable, long-term durability
FlowCore400™ is not a peak-number product.
It is a response-driven, torque-focused solution engineered around real driving — not screenshots.
Order Instructions & Shipping
Production Time: 15–20 business days after order placement.
Please leave a note at checkout with your VIN to confirm fitment. If not provided, we will contact you via email.
Shipping & Transportation:
The FlowCore400™ system is shipped in smaller sections to ensure safe transit and prevent damage. Assembly of these sections is required upon installation at the user’s responsibility.
Shipping Costs: Vary depending on location, typically $135–$275 USD worldwide. The final shipping method and cost will be confirmed after order placement, using air or sea freight as appropriate.
Technical FAQ
Q: Why choose 400-cell over a 200-cell "Race" downpipe?
A: Modern VW ECUs are highly sensitive to catalyst efficiency. While 200-cell pipes often trigger a Check Engine Light (CEL) without a Stage 2 tune, our high-flow 400-cell substrate provides the necessary surface area to satisfy factory sensor parameters. You get the flow of a performance part with the reliability of an OEM component.
Q: Will this trigger "Limp Mode" on OPF-equipped models?
A: No. Generic "OPF Deletes" often cause pressure differential errors, forcing the ECU into a restricted power state. The FlowCore400™ system includes an integrated OPF replacement designed to maintain factory pressure signals, allowing for a 100% bolt-on installation without software interference.
Q: Does this downpipe require a Stage 2 tune?
A: No software is required. This system is engineered as a "Hardware-First" solution. It is fully compatible with factory software, Stage 1, or JB4 systems, providing increased mid-range torque without triggering an ECU flag.
Q: How does "Vortex Generation" improve daily drivability?
A: By using calculated internal angles and a cast upper section, we create a controlled vortex that maintains high exhaust velocity even at low RPM. This focus on velocity over raw volume is why our system achieves peak torque 235 RPM sooner than the factory assembly.
Q: Will I experience raw fuel odor (exhaust smell)?
A: No. Our 400-cell core is highly efficient at converting unburnt hydrocarbons. This ensures the exhaust odor remains refined, making it ideal for daily-driven vehicles and enclosed spaces.
